- Product name: SOMT insert
- Series: SOMT
- Chip-Breakers: GM / GH
description
Product Information:
High-feed milling is a machining method that pairs shallow depth of cut (DOC) with high feed rate up to 2.0 mm per tooth. This combination maximizes the amount of metal being removed from a part and increases the number of finished parts in a given time.High feed milling insert SOMT type with 4 edges is highly economical; A tough submicron substrate, improved TiAlN PVD coated grade for better chip flow. It has an extraordinary cutting feed rate. Excellent notch wear and built-up edge resistance.
Specifications:
Type | Ap (mm) | Fn (mm/rev) | CVD | PVD | |||||||||
WD3020 | WD3040 | WD1025 | WD1325 | WD1525 | WD1328 | WR1010 | WR1520 | WR1525 | WR1028 | WR1330 | |||
SOMT100420ER-GM | 0.10-1.20 | 0.20-2.00 | ● | ● | O | O | |||||||
SOMT140520ER-GH | 0.50-2.00 | 0.42-2.00 | ● | ● | O | O | |||||||
● : Recommended Grade
O: Optional Grade
Application

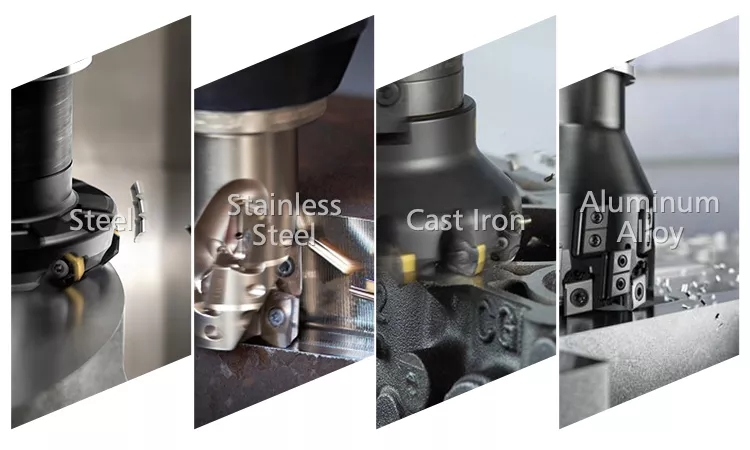

Designed for machining heat resistant alloys, austenitic stainless steel, hard alloys and carbon steel at medium to high cutting speeds, interrupted cut and unfavorable conditions. Application for plane machining, step machining, grooving machining and cavity machining.
FAQ:
What is High-feed milling?
High-feed milling is a machining method that pairs shallow depth of cut with high feed rate. It has a very high metal-removal rate, can increase tool life and productivity and save time.
What method is give priority to recommended?
Down milling is give priority to use. Because use the down milling method, the burnishing effect can be avoided, have less heat & minimal work-hardening tendency.
Wedo CuttingTools Co,.Ltd is well-known as one of the leading carbide inserts suppliers in China, specialized in providing high quality products with competitive price.
