- Product name: BLMP
- Insertsv Series: BLMP
- Chip-Breakers: GM
description
Product Information:

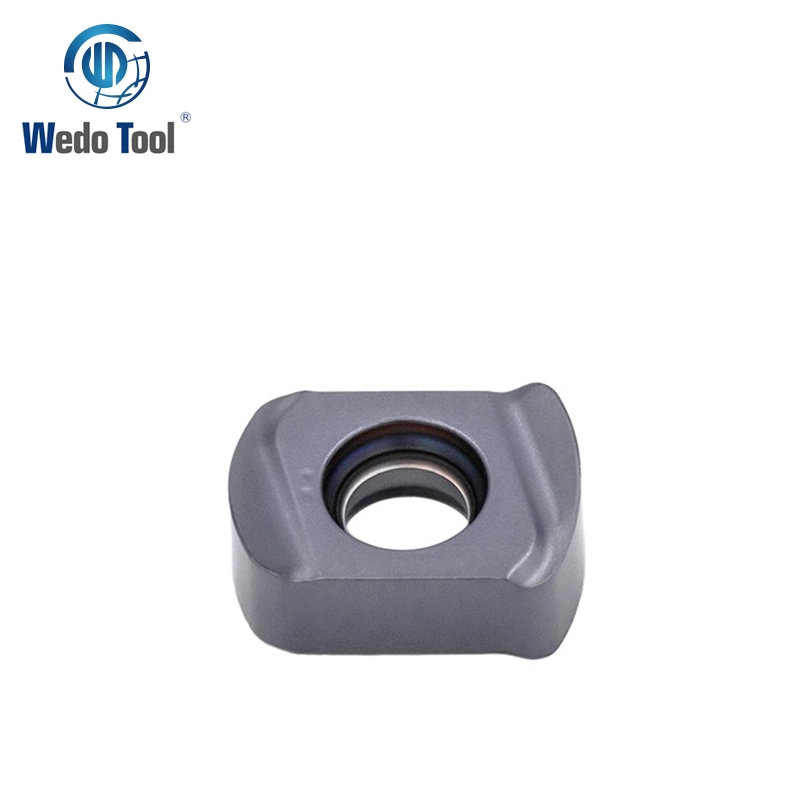

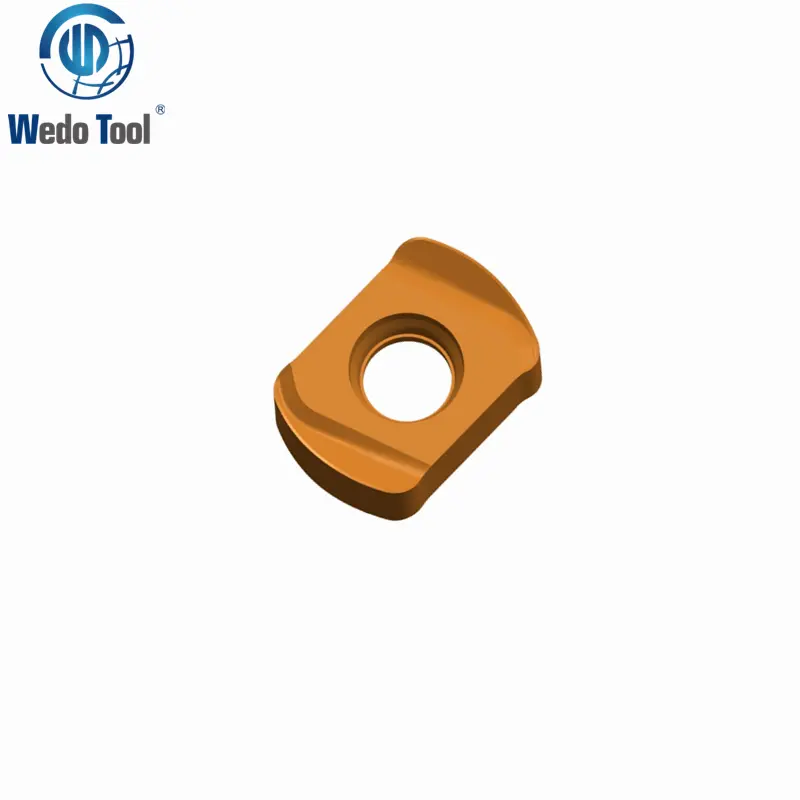

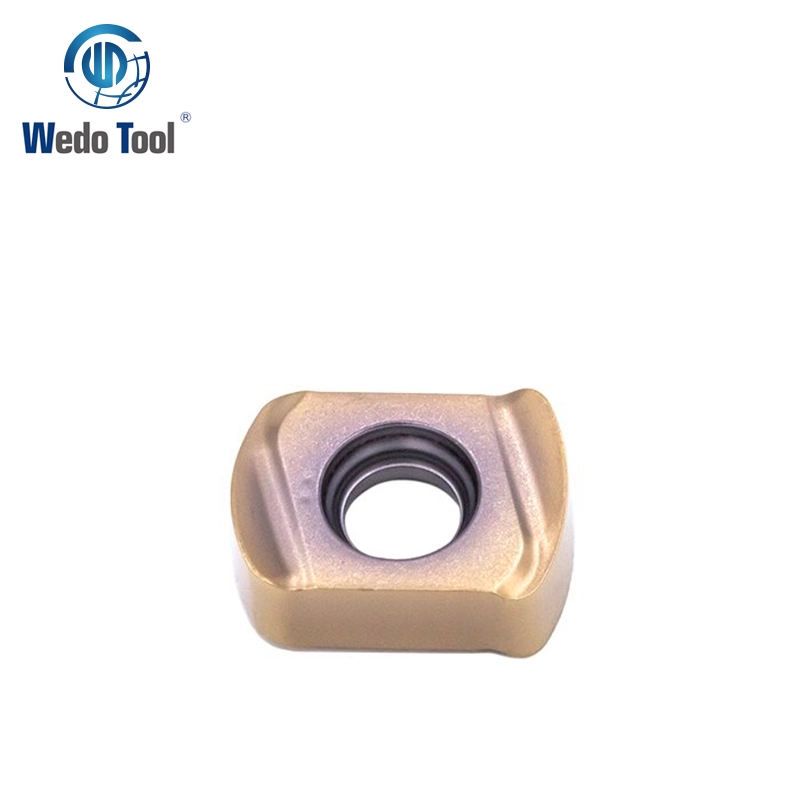

BLMP insert is double sided 4 edged insert. Cutter with inner coolant hole. big rake angle made easy cutting, 4 cutting edges to save cost.
Specifications:
Type | Ap (mm) | Fn (mm/rev) | CVD | PVD | |||||||||
WD 3020 | WD 3040 | WD 1025 | WD 1325 | WD 1525 | WD 1328 | WR 1010 | WR 1520 | WR 1525 | WR 1028 | WR 1330 | |||
BLMP0402R-GM | 0.10-0.50 | 0.20-1.50 | ● | ● | O | O | |||||||
BLMP0603R-GM | 0.10-1.00 | 0.30-2.50 | ● | ● | O | O | |||||||
BLMP0904R-GM | 0.10-1.50 | 0.30-3.50 | ● | ● | O | O | |||||||
BLMP1105R-GM | 0.30-2.00 | 0.30-4.00 | ● | ● | O | O | |||||||
● : Recommended Grade
O: Optional Grade
Application:
BLMP carbide inserts used for high feed milling on processing steel with stable quality.
FAQ:
How do I choose the milling insert?
Selecting the milling insert based on the application of demands and the space for the cutting tools. the larger of the insert.the better of the stability . For heavy machining, the insert size is normally above 1 inch. finishing, the size cans be reduced.
What is high speed machining?
High-feed milling is a machining method that pairs shallow depth of cut with high feed rate. It can achieve a very high metal-removal rate, high-speed machining to reduce cycle time, increase tool life and productivity.
