- Product name: CCMT Inserts
- Series: Turning Inserts
- Chip-Breakers: JW/MM
description
Product Information:

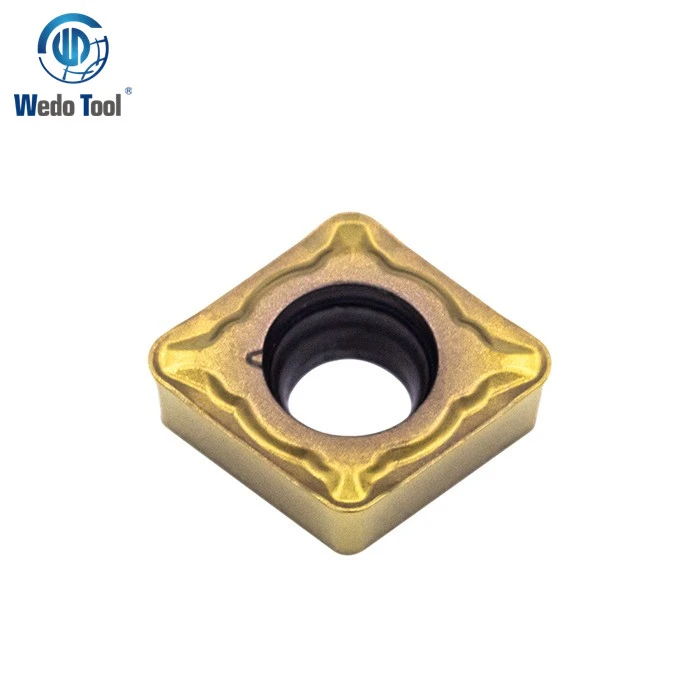

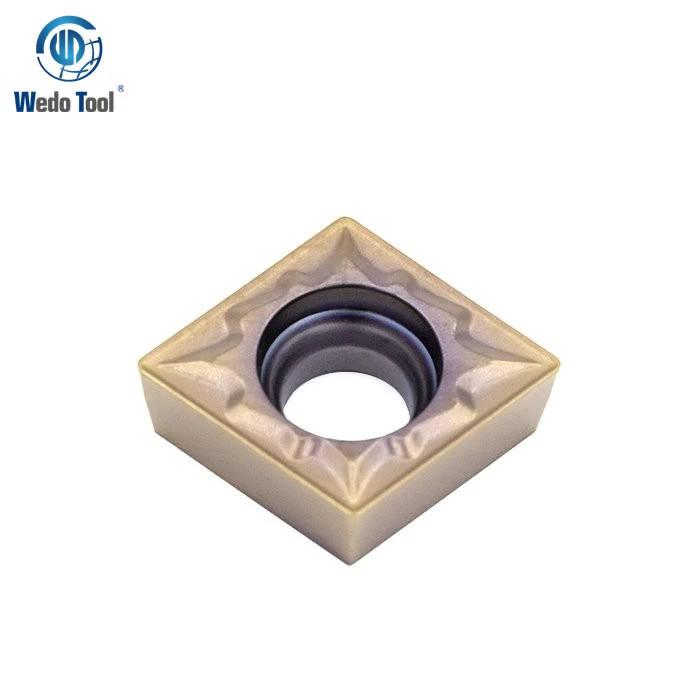

CCMT carbide insert is a 80°diamond with a 7° relief. The center hole is a 40°-60° single countersink, and a single-sided chip breaker. It has higher safety and reliability for end face machining under heavy duty interrupted cutting, vibration and unstable conditions, and is an ideal tool for machining work piece surfaces in harsh conditions. In addition, the CCMT has the advantages of high accuracy, wear resistance, corrosion resistance, long service life.
Specifications:
Application | Type | Ap (mm) | Fn (mm/rev) | Grade | ||||||||||
CVD | PVD | |||||||||||||
WD 4215 | WD 4315 | WD 4225 | WD 4325 | WD 4335 | WD 1025 | WD 1325 | WD 1525 | WD 1328 | WR 1525 | WR 1010 | ||||
General Semi Finishing | CCMT060204-JW | 0.40-2.10 | 0.05-0.18 | ● | O | ● | O | O | ● | O | O | |||
CCMT060208-JW | 0.80-2.10 | 0.10-0.35 | ● | O | ● | O | O | ● | O | O | ||||
CCMT09T304-JW | 0.40-3.80 | 0.05-0.18 | ● | O | ● | O | O | ● | O | O | ||||
CCMT09T308-JW | 0.80-3.20 | 0.10-0.35 | ● | O | ● | O | O | ● | O | O | ||||
CCMT120404-JW | 0.40-4.30 | 0.05-0.18 | ● | O | ● | O | O | ● | O | O | ||||
CCMT120408-JW | 0.80-4.30 | 0.10-0.35 | ● | O | ● | O | O | ● | O | O | ||||
CCMT120412-JW | 1.20-4.30 | 0.15-0.55 | ● | O | ● | O | O | ● | O | O | ||||
● : Recommended Grade
O: Optional Grade
Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||||||||||
CVD | PVD | ||||||||||||||
WD 4215 | WD 4315 | WD 4225 | WD 4325 | WD 4235 | WD 4335 | WD 1025 | WD 1325 | WD 1525 | WD 1328 | WR 1525 | WR 1010 | ||||
M Finishing | CCMT060204-MM | 0.30-1.60 | 0.05-0.15 | ● | O | ● | O | ||||||||
CCMT060208-MM | 0.60-1.60 | 0.10-0.30 | ● | O | ● | O | |||||||||
CCMT09T304-MM | 0.30-2.20 | 0.05-0.15 | ● | O | ● | O | |||||||||
CCMT09T308-MM | 0.60-2.40 | 0.10-0.30 | ● | O | ● | O | |||||||||
● : Recommended Grade
O: Optional Grade
Application:
The CCMT insert is widely used in thread turning, cutting and grooving etc. It’s an good choice for roughing, semi-finishing, finishing.general machining of steel, stainless steel and cast iron.
FAQ:
What is ccmt insert?
ccmt inserts are carbide insert with a 7° relief. It used for end face machining under heavy duty interrupted cutting, vibration and unstable conditions, and is an ideal tool for machining work piece surfaces in harsh conditions.
What does indexable inserts mean?
Indexable inserts edge is a replaceable shaped which is welded or clamped on to a tool body.
