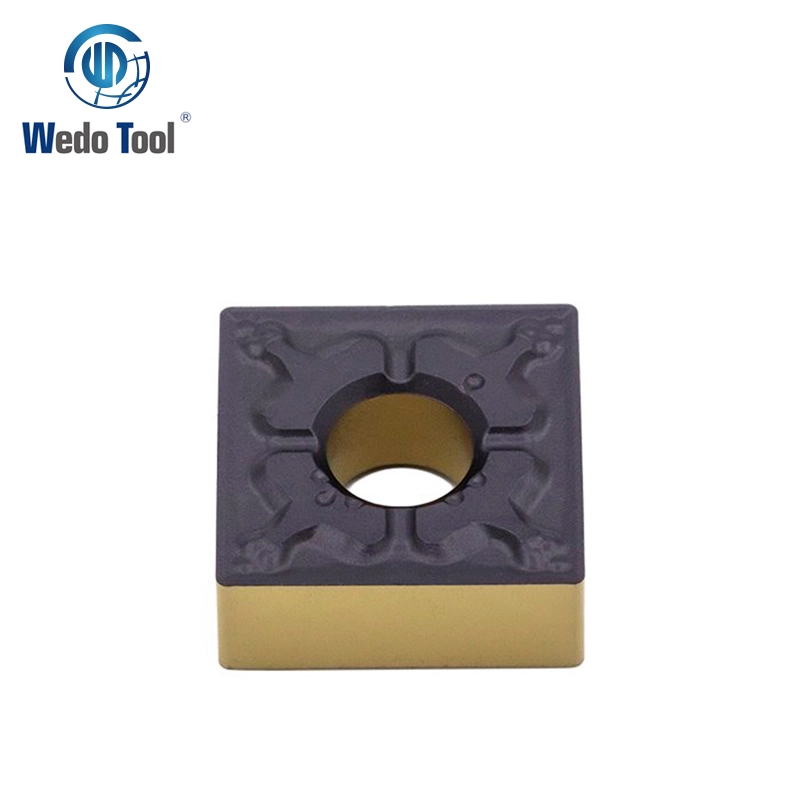

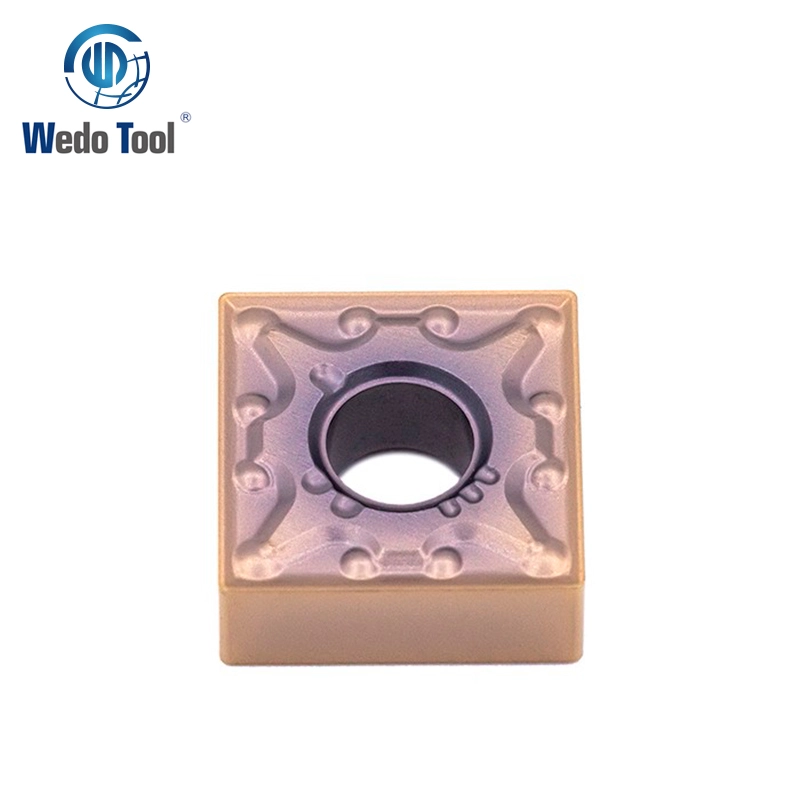

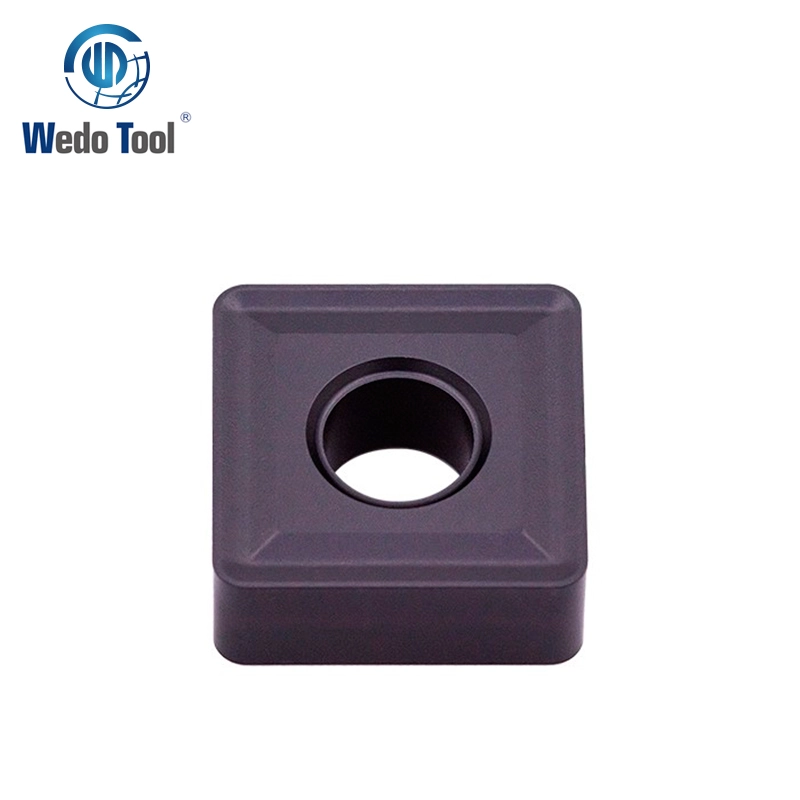

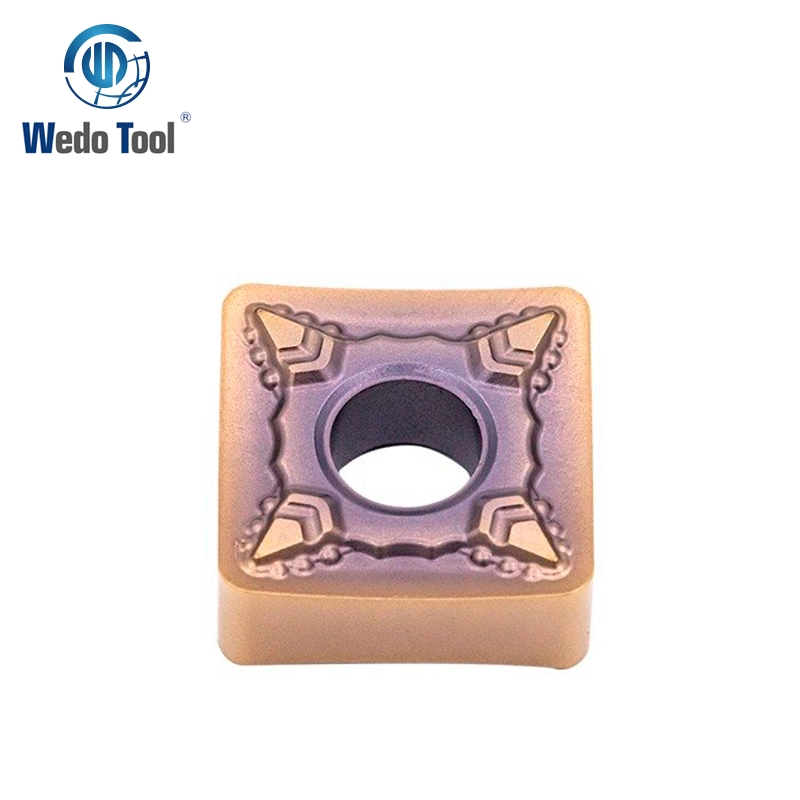

- Product name: SNMG Inserts
- Series: Turning Inserts
- Chip-Breakers: AM/AR/BF/BM/BR/CM/DM
description
Product Information:
Turing insert SNMG. Double-Sided 90° square inserts. 0 degree relief angle. Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid tool holding systems.Provides longer tool life than uncoated grades. Used on a wide range of materials and applications.
Specifications:
Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||||||||||
CVD | PVD | ||||||||||||||
WD4215 | WD4315 | WD4225 | WD4325 | WD4235 | WD4335 | WD1025 | WD1325 | WD1525 | WD1328 | WR1010 | WR1325 | ||||
P Semi Finishing | SNMG120404-AM | 1.00-5.00 | 0.12-0.40 | ● | O | ● | O | O | |||||||
SNMG120408-AM | 1.20-5.00 | 0.15-0.55 | ● | O | ● | O | O | ||||||||
SNMG120412-AM | 1.50-5.00 | 0.20-0.55 | ● | O | ● | O | O | ||||||||
SNMG150612-AM | 2.00-7.00 | 0.30-0.65 | ● | O | ● | O | O | ||||||||
● : Recommended Grade
O: Optional Grade
Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||||||||||
CVD | PVD | ||||||||||||||
WD4215 | WD4315 | WD4225 | WD4325 | WD4235 | WD4335 | WD1025 | WD1325 | WD1525 | WD1328 | WR1010 | WR1325 | ||||
P Rough Machining | SNMG120408-AR | 2.50-6.00 | 0.25-0.70 | ● | O | ||||||||||
SNMG120412-AR | 2.50-6.00 | 0.30-0.70 | ● | O | |||||||||||
SNMG120416-AR | 2.50-6.00 | 0.40-0.70 | ● | O | |||||||||||
SNMG150612-AR | 2.15-6.40 | 0.25-0.50 | ● | O | |||||||||||
SNMG190612-AR | 2.15-6.40 | 0.25-0.50 | ● | O | |||||||||||
SNMG190616-AR | 2.85-7.60 | 0.30-0.65 | ● | O | |||||||||||
● : Recommended Grade
O: Optional Grade
Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||||||||||
CVD | PVD | ||||||||||||||
WD4215 | WD4315 | WD4225 | WD4325 | WD1025 | WD1325 | WD1525 | WD1328 | WR1010 | WR1325 | WR1525 | WR1330 | ||||
M Finishing | SNMG120404-BF | 0.25-3.20 | 0.05-0.15 | ● | ● | O | O | ||||||||
SNMG120408-BF | 0.50-3.20 | 0.10-0.30 | ● | ● | O | O | |||||||||
SNMG120412-BF | 0.75-3.20 | 0.15-0.45 | ● | ● | O | O | |||||||||
● : Recommended Grade
O: Optional Grade
Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||||||||||
CVD | PVD | ||||||||||||||
WD4215 | WD4315 | WD4225 | WD4325 | WD1025 | WD1325 | WD1525 | WD1328 | WR1010 | WR1325 | WR1525 | WR1330 | ||||
M Semi Finishing | SNMG120404-BM | 0.30-4.20 | 0.08-0.25 | O | O | ● | O | O | |||||||
SNMG120408-BM | 0.65-4.20 | 0.15-0.45 | O | O | ● | O | O | ||||||||
SNMG120412-BM | 0.95-4.20 | 0.25-0.65 | O | O | ● | O | O | ||||||||
SNMG150608-BM | 0.65-5.20 | 0.15-0.45 | O | O | ● | O | O | ||||||||
SNMG150612-BM | 0.95-5.20 | 0.25-0.65 | O | O | ● | O | O | ||||||||
● : Recommended Grade
O: Optional Grade
Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||||||||||
CVD | PVD | ||||||||||||||
WD4215 | WD4315 | WD4225 | WD4325 | WD1025 | WD1325 | WD1525 | WD1328 | WR1010 | WR1325 | WR1528 | WR1330 | ||||
M Rough Machining | SNMG120404-BR | 0.30-4.20 | 0.08-0.25 | O | O | O | ● | ● | O | ||||||
SNMG120408-BR | 0.65-4.20 | 0.15-0.45 | O | O | O | ● | ● | O | |||||||
SNMG120412-BR | 0.95-4.20 | 0.23-0.66 | O | O | O | ● | ● | O | |||||||
SNMG150608-BR | 0.65-5.20
| 0.15-0.44 | O | O | O | ● | ● | O | |||||||
SNMG150612-BR | 0.95-5.20 | 0.23-0.66 0.23-0.66 | O | O | O | ● | ● | O | |||||||
● : Recommended Grade
O: Optional Grade
Application | WD3040 | Ap (mm) | Fn (mm/rev) | Grade | |||
CVD | |||||||
WD3020 | WD3040 | WD3315 | WD3415 | ||||
K Semi Finishing | SNMG120404-CM | 0.40-4.20 | 0.08-0.25 | ● | O | ||
SNMG120408-CM | 0.80-4.20 | 0.15-0.45 | ● | O | |||
SNMG120412-CM | 1.20-4.20 | 0.25-0.65 | ● | O | |||
● : Recommended Grade
O: Optional Grade
Application | Type | Ap (mm) | Fn (mm/rev) | Grade | ||||||||||||
CVD | PVD | |||||||||||||||
WD4215 | WD4315 | WD4225 | WD4325 | WD1025 | WD1325 | WD1525 | WD1328 | WR1010 | WR1520 | WR1525 | WR1028 | WR1030 | ||||
S Semi Finishing | SNMG120404-DM | 0.40-3.90 | 0.08-0.25 | O | O | O | ● | ● | O | O | ||||||
SNMG120408-DM | 0.80-3.90 | 0.15-0.45 | O | O | O | ● | ● | O | O | |||||||
SNMG120412-DM | 1.20-3.90 | 0.25-0.65 | O | O | O | ● | ● | O | O | |||||||
SNMG120416-DM | 1.80-3.90 | 0.30-0.90 | O | O | O | ● | ● | O | O | |||||||
SNMG150608-DM | 0.80-3.90 | 0.15-0.45 | O | O | O | ● | ● | O | O | |||||||
SNMG150612-DM | 1.20-3.90 | 0.25-0.65 | O | O | O | ● | ● | O | O | |||||||
SNMG150616-DM | 1.80-3.90 | 0.30-0.90 | O | O | O | ● | ● | O | O | |||||||
● : Recommended Grade
O: Optional Grade
Application:
Application for turning and milling carbon and alloy steels, tools steel and stainless steel.
