- Product name: RDKT Inserts
- Series: RDKT
description
Product Information:

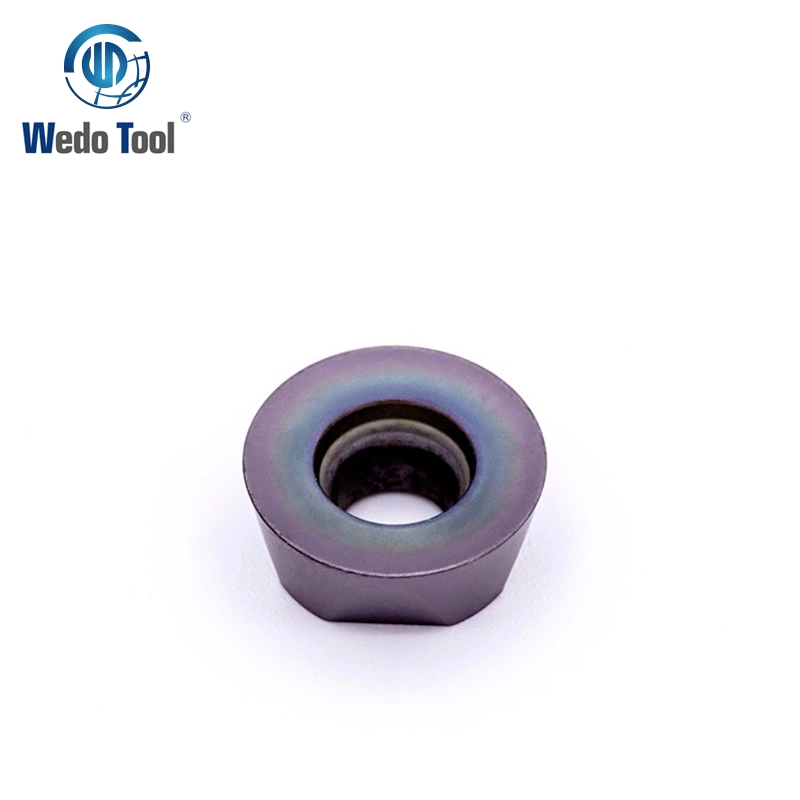

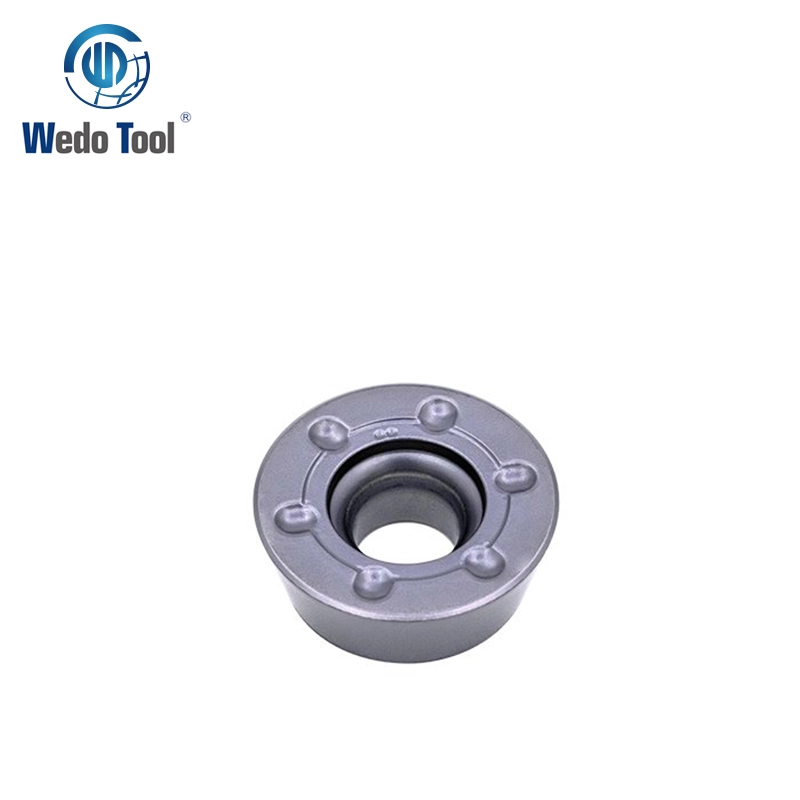

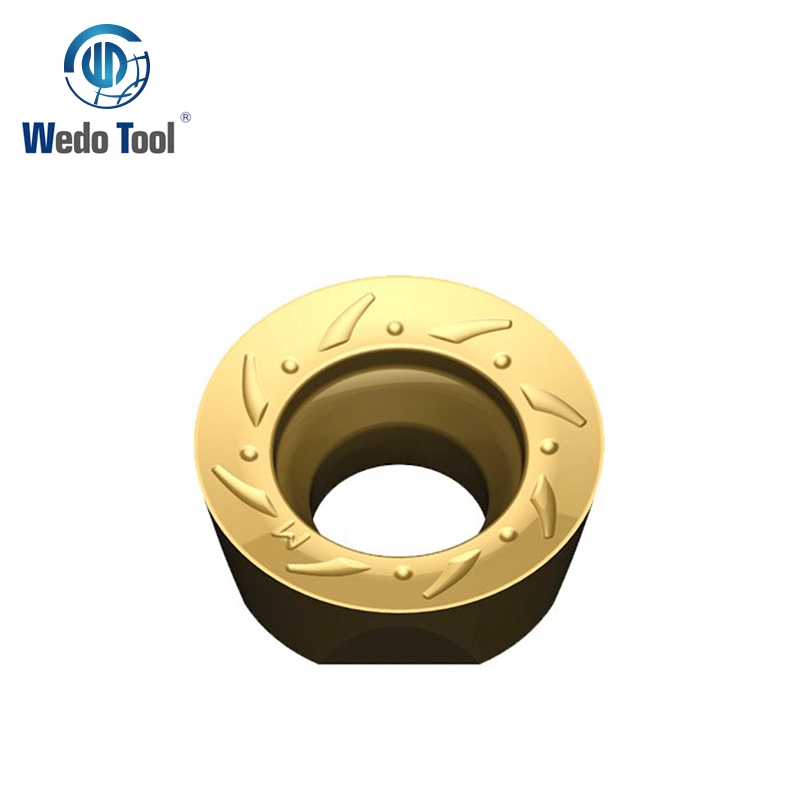

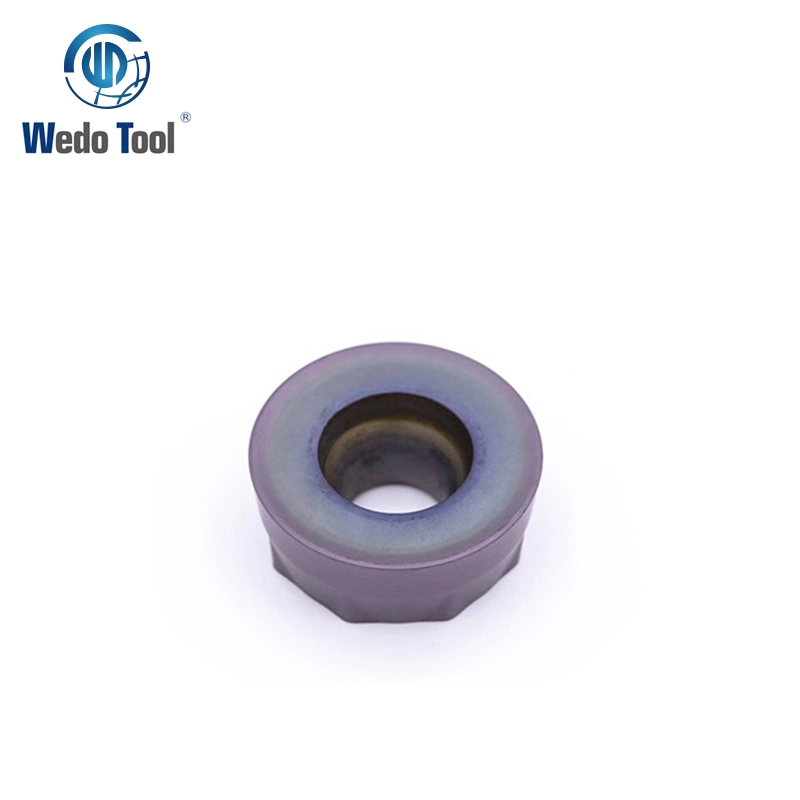

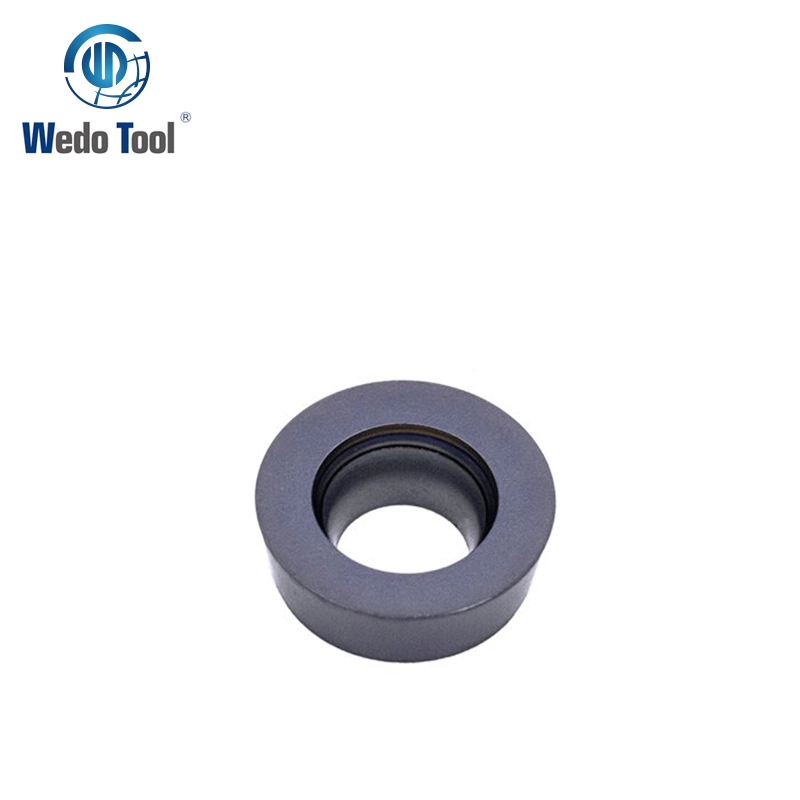

RDKT is round shape Milling inserts.Solid carbide provides better rigidity than high speed steel.
The R-type inserts have extra-strong cutting edge to meet the requirements for machining of curved surface of die.
Specifications:
Type | Ap (mm) | Fn (mm/rev) | CVD | PVD | |||||||||
WD 3020 | WD 3040 | WD 1025 | WD 1325 | WD 1525 | WD 1328 | WR 1010 | WR 1520 | WR 1525 | WR 1028 | WR 1330 | |||
RDKT0803MO | 1.00-3.00 | 0.05-0.25 | ● | ● | O | O | |||||||
RDKT10T3MO | 1.50-4.00 | 0.05-0.30 | ● | ● | O | O | |||||||
RDKT1204MO | 1.50-5.00 | 0.05-0.35 | ● | ● | O | O | |||||||
RDKT1604MO | 2.00-6.50 | 0.10-0.40 | ● | ● | O | O | |||||||
RDKT1605MO | 2.00-6.50 | 0.10-0.40 | ● | ● | O | O | |||||||
RDKT1606MO | 2.00-6.50 | 0.10-0.40 | ● | ● | O | O | |||||||
RDKT2006MO | 3.00-8.00 | 0.10-0.40 | ● | ● | O | O | |||||||
● : Recommended Grade
O: Optional Grade
Application:
It suitable for most materials.Mainly focuses on face milling and cavity profile milling of steel alloy steel, stainless steel and cast iron.
FAQ:
What is a profile in machining?
Profile milling is a type of milling process, usually used to semi-finish or finish the vertical or slanted surfaces, including multi-axis milling of convex and concave shapes in two or three dimensions. Profile milling CNC Sequence is a 2.5 axis sequence.
How is milling done?
The milling process is removing the materials by performing many separate and small cuts. It is accomplished by using a cutter with many teeth, spinning the cutter at a high speed, or advancing the material through the cutter slowly.
Wedo CuttingTools Co,.Ltd is well-known as one of the leading carbide inserts suppliers in China. The company’s main products are turning inserts, Milling inserts, Drilling inserts, threading inserts, grooving inserts and End Mill.
