• DCGT Inserts
DCGT Inserts
  • Product name: DCGT Inserts
  • Series: Turning Inserts
  • Chip-Breakers: FS

description

undefined

Product Information:

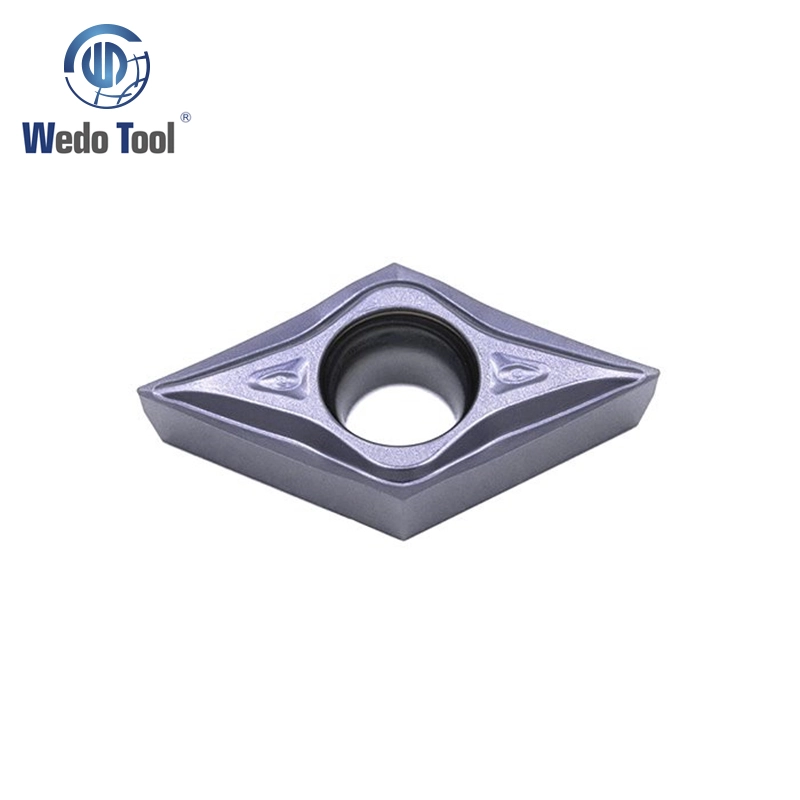

DCGT turning inserts are 55° inserts featuring 7° positive flank with very positive rake angle and sharp cutting edge. It can combine with different chip breakers and grades for excellent chip-control and high positive geometry. DCGT our major categories which are DCGT11T301. DCGT11T302.DCGT11T304.DCGT150404.The multiple types of dimensions enable to meet different customer requirements and working conditions.it can also customized to meet your requirements.



Specifications:

Application

Type

Ap

(mm)

Fn

(mm/rev)

Grade

CVD

PVD

WD4215

WD4315

WD4225

WD4325

WD4235

WD4335

WD1005

WD1035

WD1328

WD1505

WR1525

WR1010

Small   Parts Machining

DCGT11T301-FS

0.10-1.50

0.02-0.06







O


O



DCGT11T302-FS

0.20-2.00

0.05-0.12







O


O



DCGT11T304-FS

0.20-2.50

0.08-0.25







O


O



DCGT11T308-FS

0.30-3.00

0.10-0.30







O


O



: Recommended Grade

O: Optional Grade



Application:

55° diamond shape for turning and milling automobile engine block, cylinder head, transmission parts, gearbox. indexable inserts with pcd cutting edges are precision cutting tools, which are used in machining of aluminium alloys, copper, brass, non-ferrous materials and high temperature materials. Also we recommend these inserts for finishing steel and stainless-steel materials.



FAQ:

Where is tungsten carbide manufactured?

There are many company manufacture tungsten carbide.but approximately 85% of the world's tungsten comes from China .Zhuhzou city is the largest tungsten carbide products manufacturing center in Asia.



What is carbide insert use for?

Carbide inserts are replaceable with a huge variety of styles, sizes and grades.they are used to machine different kinds of metals, including steels, carbon, cast iron, high-temperature alloys and other non-ferrous metals.
