- Product name: SCMT Inserts
- Series: SCMT
- Chip-Breakers: JW/MM
description
Product Information:

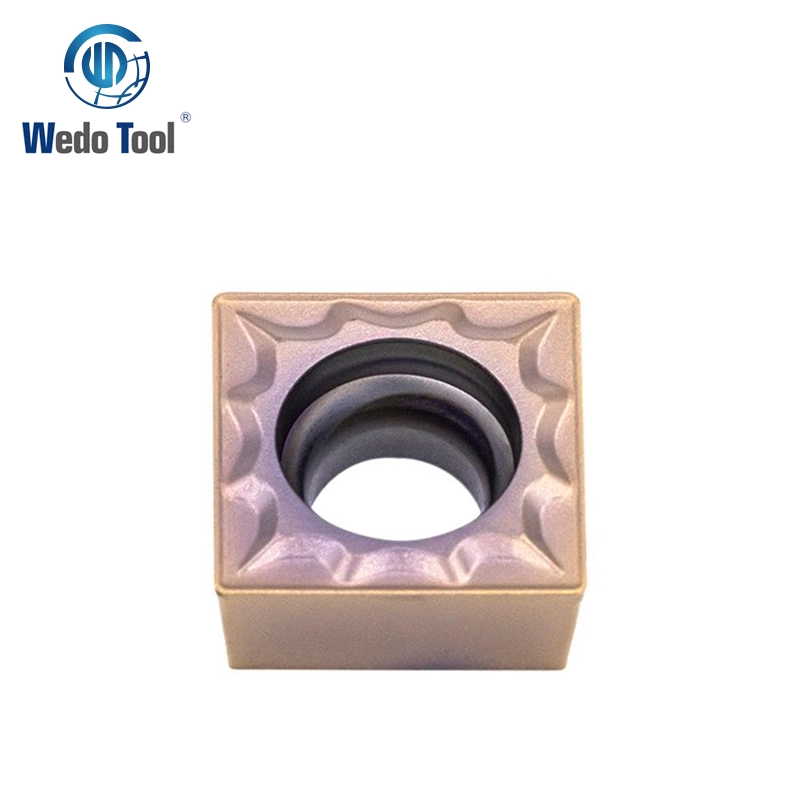

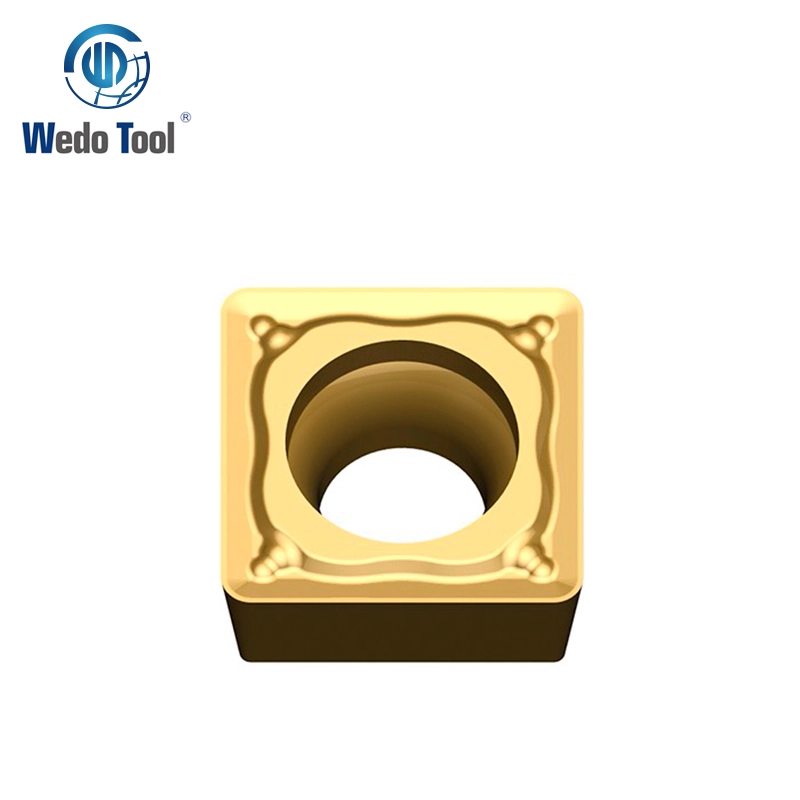

SCMT 90° Square Shaped Indexable Inserts. "S" shaped inserts provide a strong insert shape, great for medium to roughing applications. Negative inserts can provide up to 8 cutting edges. Available in multiple chip breakers & grades. Positive Insert with Chip breaker.
Shape: Square (S)
Clearance Angle: 7° (C)
Tolerance: Class M (M)
Type: Single-Sided (T)
Chipbreaker: General Purpose
Specifications:
Application | Type | Ap (mm) | Fn (mm/rev) | Grade | ||||||||||
CVD | PVD | |||||||||||||
WD4215 | WD4315 | WD4225 | WD4325 | WD4335 | WD1025 | WD1325 | WD1525 | WD1328 | WR1525 | WR1010 | ||||
General Semi Finishing | SCMT09T304-JW | 0.40-3.10 | 0.05-0.20 | ● | O | ● | O | O | ● | O | O | |||
SCMT09T308-JW | 0.80-3.10 | 0.10-0.35 | ● | O | ● | O | O | ● | O | O | ||||
SCMT120404-JW | 0.40-4.20 | 0.05-0.20 | ● | O | ● | O | O | ● | O | O | ||||
SCMT120408-JW | 0.80-4.20 | 0.10-0.30 | ● | O | ● | O | O | ● | O | O | ||||
SCMT120412-JW | 1.20-4.20 | 0.15-0.55 | ● | O | ● | O | O | ● | O | O | ||||
● : Recommended Grade
O: Optional Grade
Application | Type | Ap (mm) | Fn (mm/rev) | Grade | |||||||||||
CVD | PVD | ||||||||||||||
WD4215 | WD4315 | WD4225 | WD4325 | WD4235 | WD4335 | WD1025 | WD1325 | WD1525 | WD1328 | WR1525 | WR1010 | ||||
M Finishing | SCMT09T304-MM | 0.30-2.40 | 0.05-0.15 | ● | O | ● | O | ||||||||
SCMT09T308-MM | 0.60-2.40 | 0.10-0.30 | ● | O | ● | O | |||||||||
● : Recommended Grade
O: Optional Grade
Application:
Application for Steel. Stainless Steel machining.
FAQ:
How to choose correct turning insert?
Select insert geometry based on selected operation, for example finishing.
Select the largest possible nose angle on the insert for strength and economy.
Select the insert size depending on the depth of cut
Select the largest possible nose radius for insert strength.
How do you measure carbide inserts?
A two-digit number designates the sizes of these inserts. The first digit indicates the number of eighths of an inch in the width and the second digit indicates the number of fourths of an inch in the length of the insert.
