- Product name: XNMU Inserts
- Series: XNMU
- Chip-Breakers: MM/GR
description
Product Information:

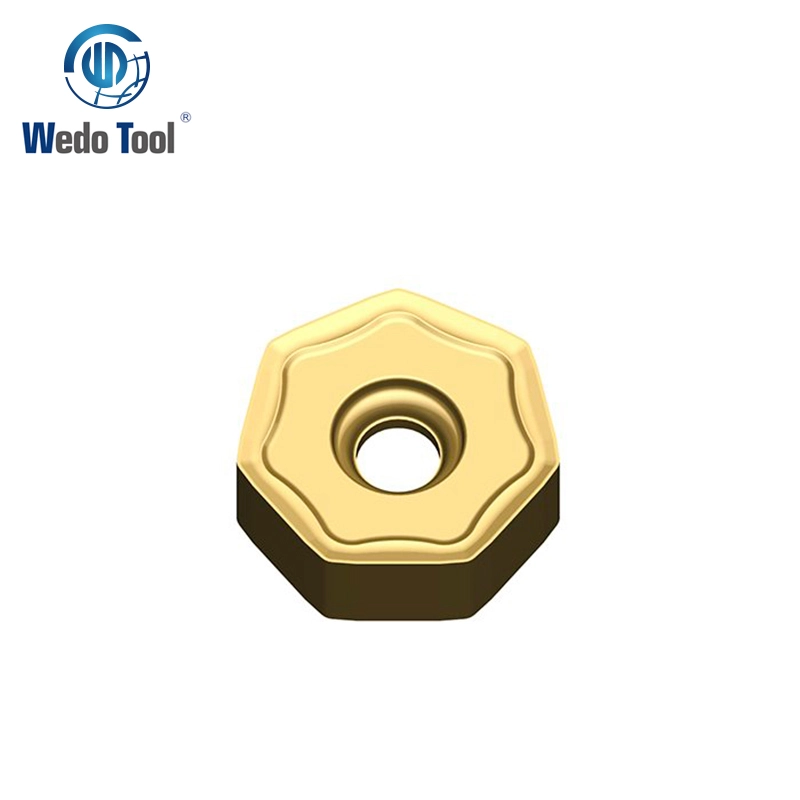

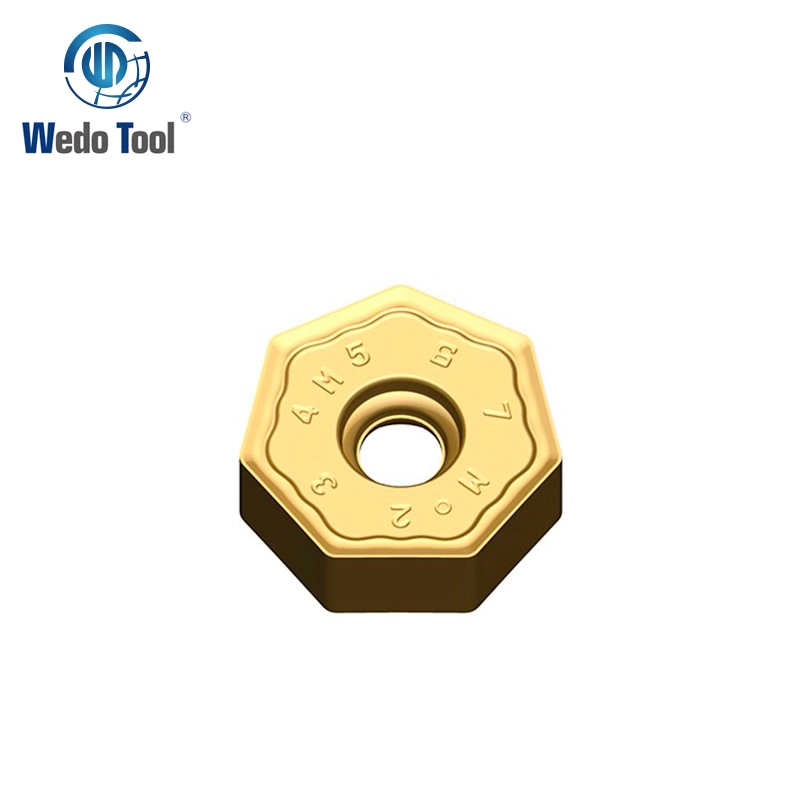

XNMU milling insert with 0 degree clearance angle. Double-sided inserts with economical 14 cutting edges for steel and cast iron milling.Inserts available in multiple grades.0° negative relief angle for insert strength and durability.Coolant thru capable.Very strong and durable face mills.
Suitable for multiple materials.
Specifications:
Type | Ap (mm) | Fn (mm/rev) | CVD | PVD | |||||||||
WD3020 | WD3040 | WD1025 | WD1325 | WD1525 | WD1328 | WR1010 | WR1520 | WR1525 | WR1028 | WR1330 | |||
XNMU070508-MM | 0.2-3.0 | 0.05-0.2 | ● | ● | O | O | |||||||
XNMU070508AN-GR | 0.2-3.0 | 0.05-0.2 | ● | ● | O | O | |||||||
● : Recommended Grade
O: Optional Grade
Application:
Application for high productivity finish and semi-finish face milling of stainless steels, steels and alloy steels.
FAQ:
What are face mills?
Face milling is a machining process in which the milling cutting is placed perpendicular to the workpieces. The milling cutting is essentially positioned “face down” towards the top of the work piece. When engaged, the top of the milling cutting grinds away at the top of the workpiece to remove some of its material.
What is the difference between face milling and End Milling?
These are two of the most prevalent milling operations, each using different types of cutters – the and mill and the face mill. The difference between End Milling and face milling is that an End Mill uses both the end and the sides of the cutter, whereas face milling is used for horizontal cutting.
