Product Information:

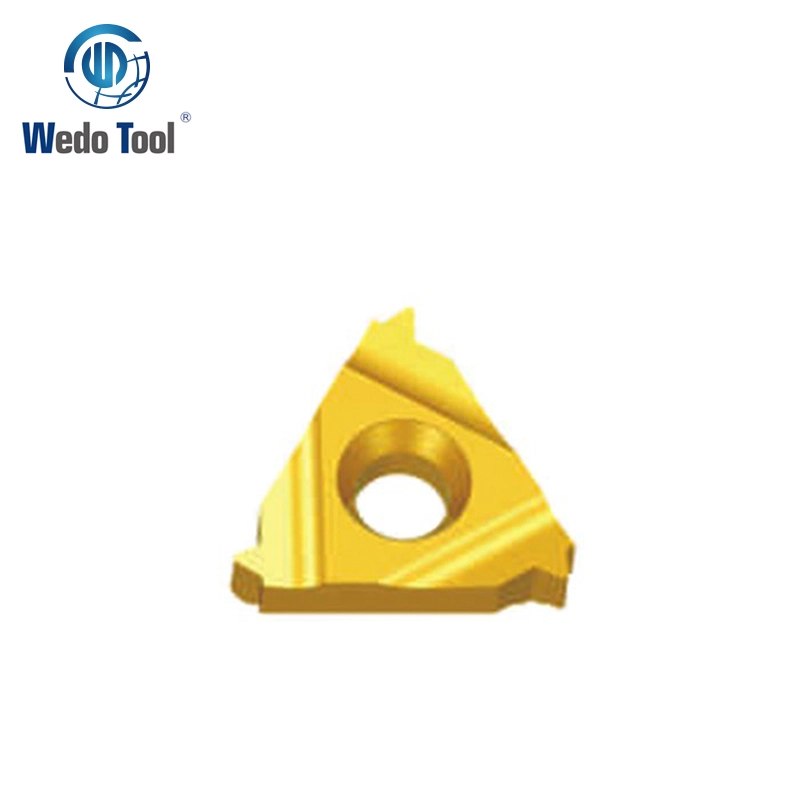

Threading indexable turning inserts with special geometry and rigid mounting in the turning holder, enables turning possibilities of strong and fast production. This tool is highly valued as it is proven in demanding production processes, in long-term use and has upgraded the production process with better results. With its high efficiency, this production-tested threading insert will help extending time between changing periods of your tool and consequently reduce production downtime.

This carbide insert will bring you satisfaction. High temperature resistance and surface coating enables smooth separation of the chip from the work process.

Specifications:

Type	Range of thread pitch	Insert Dimensions (mm)				Grade
Type	Pitch/Inch	IC	S	X	Y	WD1320	WD1520
16ER8NPT	8	9.525	3.52	1.8	1.3	●	O
16ER11.5NPT	11.5	9.525	3.52	1.5	1.1	●	O
16ER14NPT	14	9.525	3.52	1.2	0.9	●	O
16ER18NPT	18	9.525	3.52	1	0.8	●	O
16ER27NPT	27	9.525	3.52	0.8	0.7	●	O
16IR8NPT	8	9.525	3.52	1.8	1.3	●	O
16IR11.5NPT	11.5	9.525	3.52	1.5	1.1	●	O
16IR14NPT	14	9.525	3.52	1.2	0.9	●	O
16IR18NPT	18	9.525	3.52	1	0.8	●	O
16IR27NPT	27	9.525	3.52	0.8	0.7	●	O

● : Recommended Grade

O: Optional Grade

Application:

It’s useful set of threading carbide tungsten turning inserts. It’s intended for turning steel and stainless steel, but it also performs when turning other alloys.

The special designed chip breaker ensures reliable chip flow, both in case of external and internal threading. The different series of threading inserts can be applied in different fields.

FAQ:

What is a thread insert called?

A threaded insert that is inserted into an object to add a threaded hole.

How do threaded inserts work in metal?

When the thread inserts for metal.the inserts will create a metal threading point which can be installed and removed many times.
